Product Description

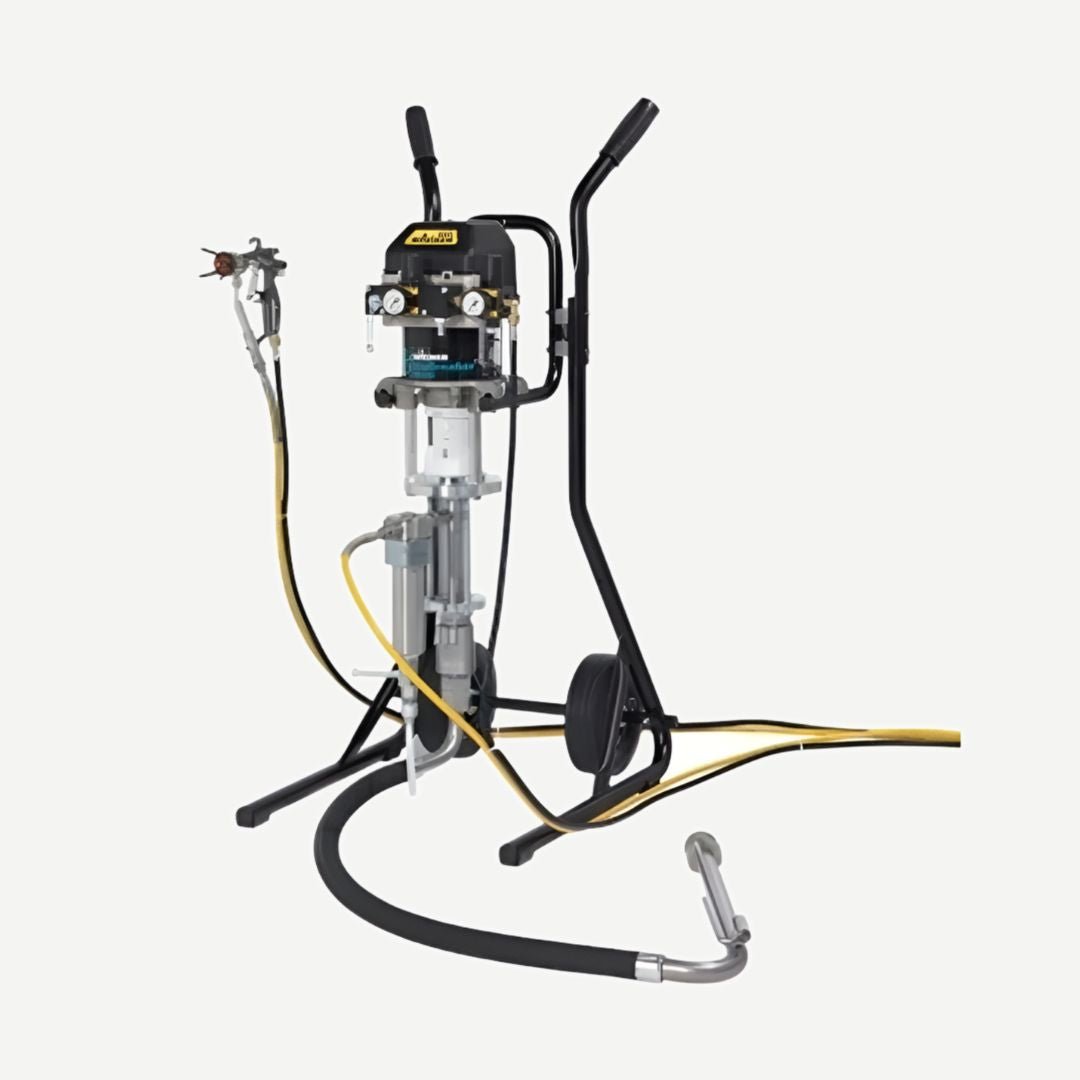

Wagner Puma 28:40 Air Assisted Airless Spray Unit
The Wagna Puma 28:40 is a powerful and versatile, high pressure piston spray pump: For airless and aircoat coating with low to medium viscosity materials in cabinet making, wood working, furniture and metal working operations.
The performance capability of Puma 28-40 allows a choice of applications in the aircoat or airless process.
The high pressure ratio provides a low pulsation material flow and brilliant atomisation even with greater
hose lengths.
Due to the optimised inlet and outlet valves and also a self adjusting packing system, the pump can be cleaned quickly and thoroughly.
- Powerful & Reliable, under full pressure
- Designed for various applications
- User-friendly
- Optimum Service
- Gentle on Materials
- Quiet Air Motor
- 3 Year Warranty
- No-ice Air Motor
- 50% Faster Maintenance
- Excellent Handling
- Perfect Coating Results
Technical Detail
Technical Information
Pump Ratio | 28:1 |
Operating Pressure | 224 bar, 3249 PSI |
Volumetric Flow per Double Stroke | 40 cm³/DS, 2,44 in³/DH |
Volumetric Flow per 60 DH | 2.4 l/min |
Max. Stroke Rate | 60 DS/min |
Material Inlet | M–M 36×2 |
Material Outlet | M–M 24×1,5 |
Air Inlet Pressure | 2,5 – 8,0 bar, 36 – 116 PSI |
Sound Level at 6 bar Air Pressure | 74 dB(A) |
Material Temperature | 5 – 80 °C, 41 – 176 °F |
Ambient Temperature | 5 – 60 °C, 41 – 140 °F |
Material Ph | 3.5 – 9 pH |
Max. Material Pressure at Pump Inlet | 20 bar, 290 PSI |
Allowable Inclination | ±10 ° |
Weight | 16.0kg |
